JF-8 Electronic Counting Machine

Short Description:

The block bottle device on the passing bottle-track of the conveying bottle system make the bottles which came from the previous equipment stay in the bottling position, waiting to be filled in. The medicine goes into the medicine container in order by the vibration of the feeding corrugated plate. There’s a counting photoelectric sensor installed on the medicine container, after counting of the medicine in the medicine container by the counting photoelectric sensor, the medicine goes into the bottle in the bottling position.

Send email to us

Product Detail

Product Tags

Main features

1. Strong compatibility, It can count and bottle various kind of solid preparation or solid granules for example ,tablet (including irregular shape tablet)、capsule、soft capsule（transparent and non-transparent）、pill etc.
2.Vibration discharging material: Gentle laying-off by 8 enter closes’ vibration, with special patented flap partial filling system, the discharging of medicine is homogeneous and stable without damage.
3.Anti high dust : Adopting the anti-high dust photoelectric sensing technology only developed by our company ,it also can work stably under the high dust circumstance.
4. Correct counting: With automatic photoelectric sensor counting, the error of bottling is less
than nation standard.
5. High intelligence: It has various alarm and control functions like no bottle no count, check fault automatically and so on.
6. Auxiliary function: Photoelectric sensor can check automatically if there’s no bottle and
stops automatically.
7. Easy operation: Adopting intellectualized design, all kinds of operation data can be set according to the requirement. It can store 10 groups of setting parameters for use.
8. Convenient maintenance: After simple training, the worker can operate easily .It is easy to disassembly, clean and change the components without any tools.
9. Sealing and dustproof: Dust collection box is available, it can reduce the dust pollution (optional)

Main Technical Parameters

Applicable bottle shape: round、square plastic bottle
Filling material: 0~5#capsule、soft capsule、Φ5.5～12compressed tablet、special-shaped tablet
sugarcoated tablet,Φ3～12pill
Production capacity：10-30 bottles per minute(It depends on the bottle size、filling quantity and the tablet size)
The setting range of bottling volume:1-9999
Power supply：AC220V 50Hz 0.6kw
Accuracy rate:＞99.5%(higher than the industrial standard
Air pressure：0.6Mpa
Overall dimension：660×1280×780mm
Weight：240kg

JF-8 Electronic Counting machine

NO.	Name	Manufacturer
1	Motor	Maili
2	photoelectric sensor for seeing bottle	Panasonic
3	Photoelectric Head for counting	Adopt Everlight Electronics., Ltd
4	Pneumatic Components	AirTAC
5	Switch button	Schneider
6	The man-machine interface	Adopt Delta
7	Main control chip	By using imported STMicroelectronics co., LTD

Working principle

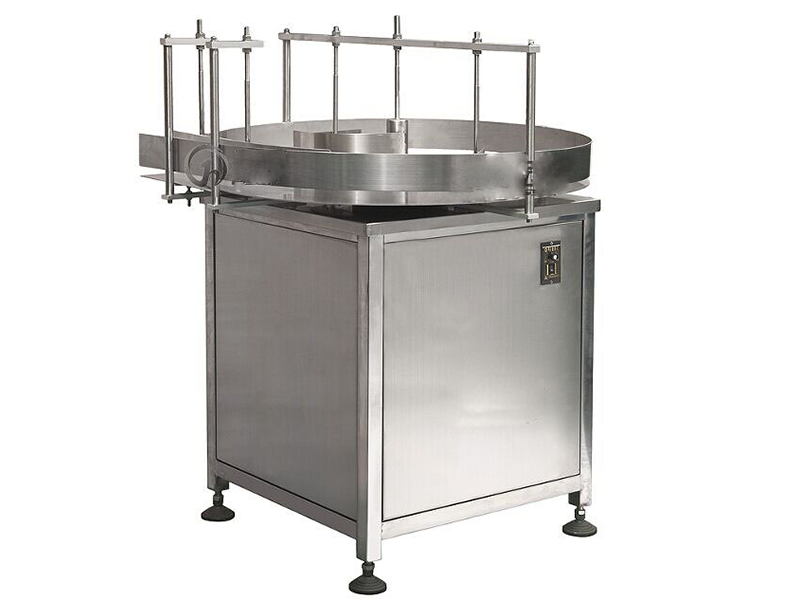

Motor drive send bottles of wheel rotation, From storage bottle tray into the bottle of rotary bottle after dialing bottle device Article will bottles lined up automatically into the guide, the guide bar again into orbit. The bottle to the photoelectric counting bottle machine conveyor belt connection place, into the conveyor belt for the number of electronic machines automatically.

Main features
1. Strong compatibility: applicable to all kinds of round bottles, square bottles and flat bottles, especially for large size of the bottle.
2. Convenient replacement varieties: in the bottle does not need to replace parts, as long as the simple adjustment.

Main technical parameters
Applicable bottle shape: 15~750ml round bottles, square bottles and flat bottles, especially for large size of the bottle
Production capacity: 20～80 bottles per minute(It depends on the bottle size)
Power supply：AC220V 50Hz0.25kw
Overall dimension：900×900×1000mm
Weight：95kg
