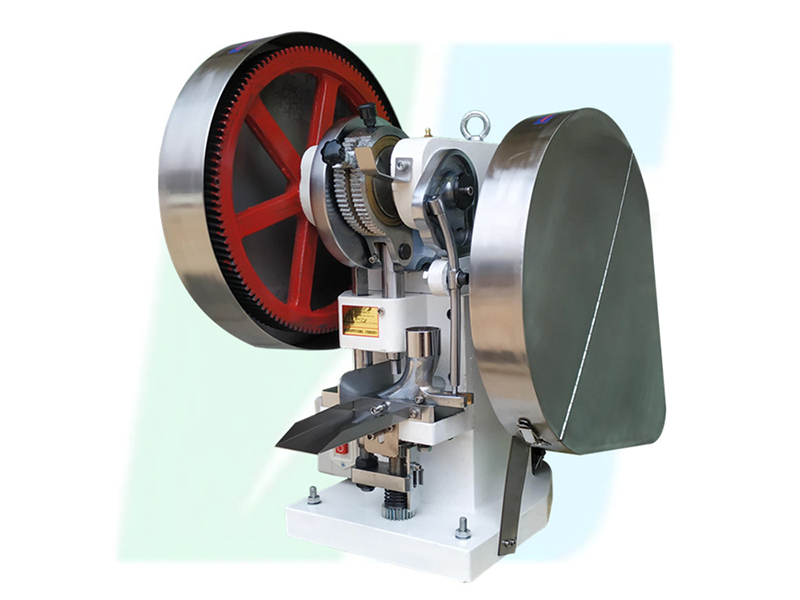

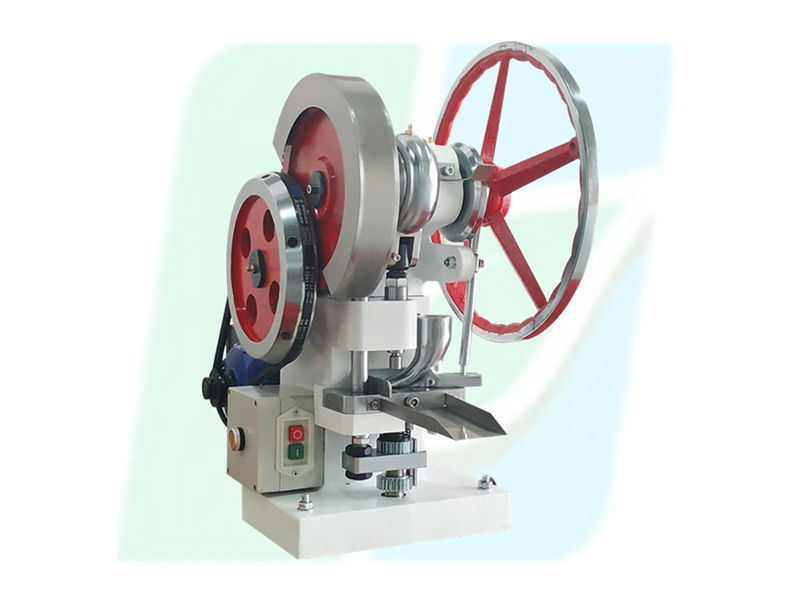

TDP Series Single Punch Tablet Press

Short Description:

This machine is used for producing different kinds of granular raw materials into round tablet. It is applicable to trial manufacturing in Lab or batch produce in small amount different kinds of tablet, sugar piece, calcium tablet and tablet of abnormal shape. It features a small desktop type press for motive and continual sheeting. It can also be and-operated. Only one pair of punching die can be erected on this press. Both filling depth of material and thickness of tablet are adjustable.


Product Detail

Product Tags

Application

TDP series Single Punch Tablet Press, which can press the powder material into tablet and can be widely used in pharmaceutical factory, chemical factory, hospital, R&D institution, laboratory. It is suitable for small batch production.
This machine is with good performance, strong suitability, simple operation, easily repairs, small cubage and light. Even under the conditions or power cut, hand swing available. It is only with one set of die, the depth of filling and the thickness of tablets is adjustable.
Compare to original TDP model press machine, it is enlarged the machine intensive and engine power with bigger strength. In the meantime enlarge the filling depth, hence to expand the specification range of tablet. Therefore, this machine can meet the demand of different kinds of Chinese traditional medicine and Western medicine and other similar product’s requirements. It’s deeply welcome by our customers in different field.

Main Technical Specifications

Maximum Pressure

1.5 T(15KN)

5 T(50KN)

6 T(60KN)

Maximum Diameter of Tablet

12mm

20mm

25mm

Maximum .Depth of Fill

12mm

18mm

17mm

Max. Thickness of Tablet

6mm

6mm

6mm

Production Capacity

6000pc/h

4500pc/h

3000pc/h

Power

370W.1400r/min

550W.1400r/min

1.5KW.1400r/min

Overall Size

570*380*630mm

650*440*650mm

760*360*690mm

Net Weight

60kg

120kg

160kg
